Model：

Port size：1/2"~24" (DN15~DN600)
Pressure：PN10-PN64 CL150-CL600
Medium：Water,steam,oil,gas,etc.
Temperature :-29～180℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Description：Electric plug valve manufacturer, factory and supplier.

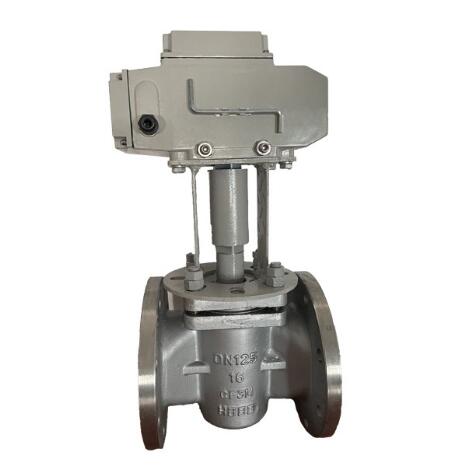

Electric plug valve manufacturer, factory and supplier In China. Electric non-lubricated plug valve is componsed of 2 way or 3 way PTFE sleeved non-lubricated plug valve and electric actuator for on off or regulating control. Electric non-lubricated plug valve is a quick switch through valve, due to the movement between the rotary sealing surface with wiping effect, and in full open can completely prevent contact with the flow of media. Electric non-lubricated plug valve can usually also be used for petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Electric non-lubricated plug valve specification
Nominal pressure range: 150Lb-600lb
Nominal size: 1"-24" (DN25-DN600)
Applicable temperature: -29~ 180℃
Material: cast steel, 304, 304L, 316, 316L stainless steel, etc
Pipe connection: flange connection, welding
Seal structure: metal seated
Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional)
Applicable medium: petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Electric non-lubricated plug valve actuator parameter
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock
