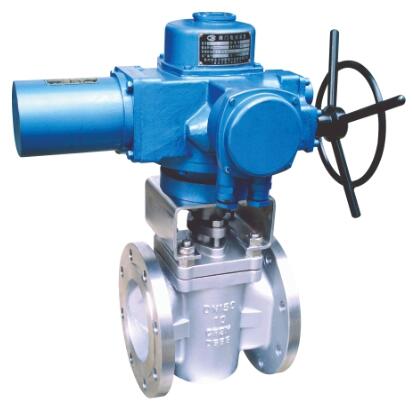

Electric actuated sleeve type plug valve introduction
Electric actuated sleeve type
plug valve is componsed of non lubricated sleeved type soft seated plug valve and electric actuator for on off or regulating control,Electric actuated sleeve type plug valve is a quick switch through valve, due to the movement between the rotary sealing surface with wiping effect, and in full open can completely prevent contact with the flow of media,Electric actuated sleeve type plug valve can usually also be used with suspension of the medium.Another important feature is that it is easy to adapt to a multi-channel structure,Electric actuated sleeve type plug valve can have two, three, or even four different flow channels.This simplifies the design of the piping system and reduces the number of valves and connections required in the equipment.
Electric actuated sleeve type plug valve specification
Nominal pressure range: 150Lb-600lb or 1.00-10 Mpa
Nominal size: 1/2"--24" (DN15--DN600)
Applicable temperature: -29~ 180℃
Material: cast steel, 304, 304L, 316, 316L stainless steel, etc
Pipe connection: flange connection, welding
Form: two or three way
Seal structure: soft seal
Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional)
Applicable medium: petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.
Electric actuated sleeve type plug valve technical parameter
Optional functions of electric actuator |
switch type, integral type, adjusting type, intelligent type |
Optional models of electric actuator |
QM, QC series |
Voltage |
AC220V, AC110V, AC380V |
Nominal diameter |
DN15mm ~ DN600mm |
Nominal pressure |
PN1.0MPa~PN10MPa,CL150-CL600 |
Applicable temperature |
PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃ |
Connection mode |
flange |
electric plug valve Body material |
WCB,304, 316, 316L,etc. |
electric plug valve ball material |
A105,304, 316, 316L,etc. |
Seat lining |
PTEE, metal seal |
electric plug valve Suitable medium |
water, petroleum, acid, viscous fluid, slurry medium, etc. |
Electric actuated sleeve type plug valve actuator parameter
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock
