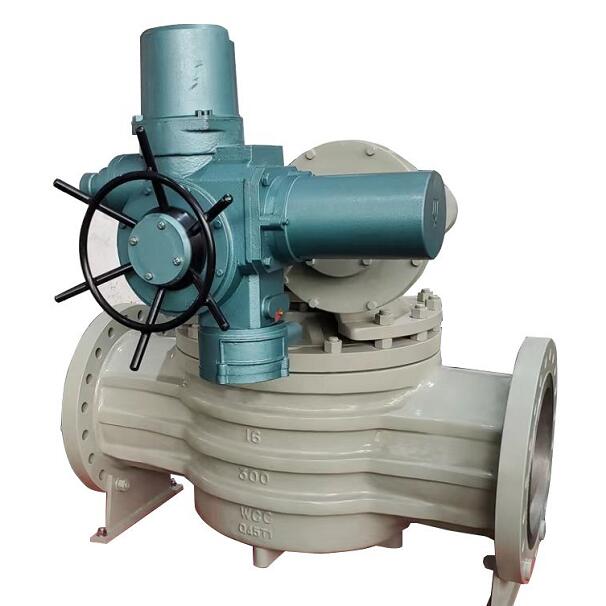

Electric actuator actuated plug valve

Plug Valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：1"-48" (DN25-DN1200)
Pressure：CL150-CL2500
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB,WCC,LCB,CF8,CF8M,CF3,CF3M etc.
Description：China electric actuator actuated plug valve manufacturer, factory and supplier.

China electric actuator actuated plug valve manufacturer, factory and supplier. Electric actuator actuated plug valve is componsed of lubricated plug valve, non-lubricated plug valve, PTFE sleeved plug valve or teflon lined plug valve and electric actuator for on off or regulating control. Electric actuator actuated plug valve is a quick switch through valve, due to the movement between the rotary sealing surface with wiping effect, and in full open can completely prevent contact with the flow of media. Electric actuator actuated plug valve can usually also be used for petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Electric actuator actuated plug valve specification
Nominal pressure range: 150Lb-2500lb
Nominal size: 1"-48" (DN25-DN1200)
Applicable temperature: -40~ 450℃
Material: cast steel, 304, 304L, 316, 316L stainless steel, etc
Pipe connection: flange connection, welding
Seal structure: metal seated
Operation mode: manual, turbine, pneumatic, hydraulic, electric (optional)
Applicable medium: petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.

Electric actuator actuated plug valve actuator parameter
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock
