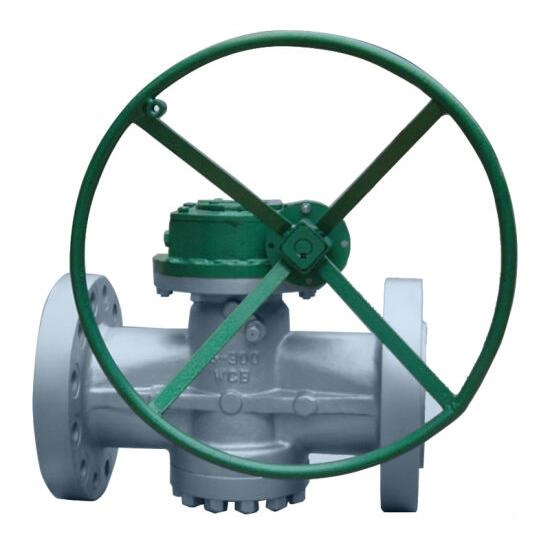

150LB 300LB 600LB 900LB Oil gas lubricated plug valve Description
150LB 300LB 600LB 900LB Oil gas lubricated plug valve is can be called as Inverted Pressure balance lubricated plug valve, 150LB 300LB 600LB 900LB Oil gas lubricated plug valve can be designed according to ANSI standard, we can customize the inverted pressure balanced lubricated plug valve according to the customer's requirement. 150LB 300LB 600LB 900LB Oil gas lubricated plug valve was widely applied for petroleum, chemical industry, pharmacy,chemical fertilizer, power industry etc.150LB 300LB 600LB 900LB Oil gas lubricated plug valve main application is cutting and connectting the pipeline medium with pressure class 150 to class 900 under the temperature -40℃ to +450℃.
150LB 300LB 600LB 900LB Oil gas lubricated plug valve Main Characteristics
1. There are compact structure, reliable sealing, perfect function and attractive shape for lubricated plug valve natural gas.
2. 150LB 300LB 600LB 900LB Oil gas lubricated plug valve is Inverted pressure balance structure, easy to be opened or closed.
3. There is a oil groove between lubricated plug valve body and sealing surface, the sealing grease can be injected into the seat through glib( oil nozzle) to increase the sealing performance.
4.For the spare parts material and flange size, 150LB 300LB 600LB 900LB Oil gas lubricated plug valve can be customized according to different actual working condition to meet project requirements.
150LB 300LB 600LB 900LB Oil gas lubricated plug valve Technical Specification
| Design & manufacturer |
API599, API6D |
| Nominal diameter |
1/2'' ~ 16''( 15mm ~ 400mm) |
| Pressure class |
Class 150 ~ Class 900 |
| Length of face to face |
ASME B16.10 |
| Flange end |
ASME B16.5 |
| Test & inspection |
API598, API6D |
| Operation model |
Handle wheel, worm gear, pneumatic and electric actuated |
150LB 300LB 600LB 900LB Oil gas lubricated plug valve Main parts material
Body : WCB, LCB,LCC,CF8,CF8M,CF3,CF3M or other material
Bonnet : WCB, LCB,LCC,CF8,CF8M,CF3,CF3M or other material
Stem : F6a,F22, F304,F316, F321
Plug : F6a,F22, F304,F316, F321
Check valve and glib ( oil nozzle): Assembly
If you want Lubricated plug valve manufacturer, lubricated plug valve factory or lubricated plug valve supplier, please feel free to contact us, we will give you the best service and technical support.
