China PTFE sleeved jacketed plug valve manufacturer,factory and supplier, PTFE sleeved jacketed plug valve is non lubricated structure,full jacket design.We can customize the jacketed plug valve with client requirement with different material and structure.

PTFE sleeved jacketed plug valve main features:
1 PTFE sleeved jacketed plug valve has reasonable structure,reliable sealing,excellent performance.
2 Sealing of PTFE sleeved jacketed plug valve is realized by the sealing face around the sleeve.It has unique 360 degree metal edge for protection and fixing of the sleeve.
3 There is no cavity in the jacketed plug valve for accumulcation of medium.
4 Metal edge provides the function of self-cleaning when the plug is rotated, applicable to operation condition that is glutinous and apt to smudge.
5 Its characteristic double-direction flow makes installation and use more convenient.
6 the materials of the parts and sizes of flanges for PTFE sleeved jacketed plug valve can be reasonably configured according to the actual operation condition of the requirement of the customers,so as to met the various need of engineering.

The Jackets of PTFE sleeved jacketed plug valve assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media.PTFE sleeved jacketed plug valve with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid.

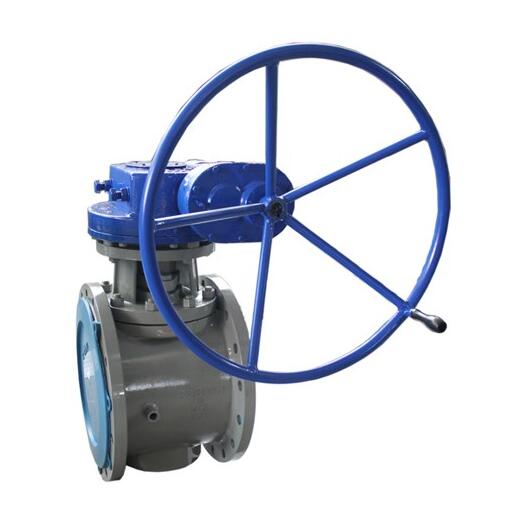

PTFE Sleeved jacketed plug valve operation: Jackted plug valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering Jacketed plug Valves with either Pneumatic or Electrical actuator operated for automation.

PTFE sleeved jacketed plug valve technical specification

Design Standard	BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
Inspection & Testing Standard	BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance	As Per ANSI B 16.10
End Connection	Flanged End to ANSI B 16.5, Class 150 / 300
	PN 10 / PN 16 / PN 25 / PN 40
	DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range	1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve	150# / 300#
	PN 10 / PN 16 / PN 25 / PN 40
Valve Operation	Manual Hand Lever / Worm-Gear Operated
	Pneumatic Actuator / Electrical Actuator
Jacket Connection Type	Flanged End / Threaded End (BSP/NPT - Female)
