Design standard :API 6D
Product scope :
1.Pressure scope :CLASS 150Lb~900Lb
2.Nominal diameter : NPS 2~36″
3.Body material:A105､LF2､F304､F316､F304L､F316L､F51,WCB､LCB､WCC､CF8､CF8M､CF3､CF3M､A890 4A etc.
4.End connection :RF RTJ BW
5.Drive device: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device

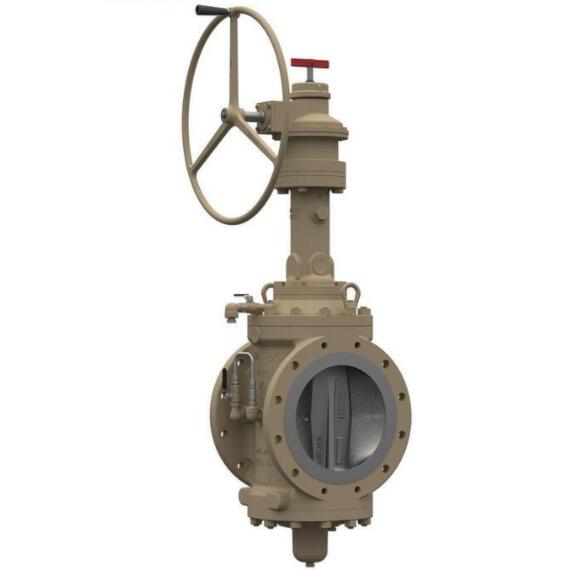

Twin seal Orbit General valve feature:

1. In the ​twin seal orbit general valve's opening/closing process, there is no contact between the sealing surfaces of the valve body and the vane, so the sealing surfaces suffer neither friction nor wear, contributing to the general twin seal plug valve's long service life and small opening/ closing torque;

2. For the ​twin seal orbit general valve's maintenance, there is no need to remove the valve from the pipeline but just remove its bottom cover to replace the vane pair, thus very easy for the maintenance;

3. The ​twin seal orbit general valve's body and plug are full-bore so that the medium can flow through the valve without any flow resistance.and it's also possible to clean the pipeline to overcome the shortcomings of the reduced port valve;

4. The ​twin seal orbit general valve's cavity is plated with hard chrome and the sealing area is hard and smooth;

5. The elastic seal on the vane is made of the fluorine rubber and molded and formed in a groove of the vane surface.The fireproof metal-to-metal seal is used as the backing of the elastic seal;

6. The twin seal orbit general valve is provided with an automatic bleed device(optional) which can prevent the abnormal pressure rise of the valve cavity and check the valve's effect after the valve is completely closed;

7. The ​twin seal orbit general valve's opening/closing indicator is in sync with the opening/closing position and can accurately display the valve's opening/closing status.
