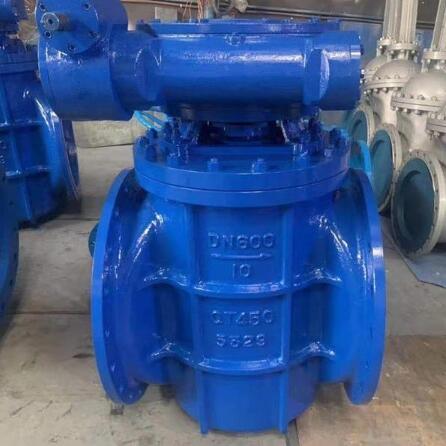

Ductile iron Full port double eccentric plug valve Description
Ductile iron Full port double eccentric plug valve can be designed according to ANSI standard, Ductile iron Full port double eccentric plug valve was widely applied for petroleum, chemical industry, pharmacy,chemical fertilizer, power industry etc,the main application of Ductile iron Full port double eccentric plug valve is cutting and connectting the pipeline medium with pressure class 150 to class 900 under the temperature -29℃ to +180℃(soft seat design);-29℃ to +450(metal seat design).

Ductile iron Full port double eccentric plug valve Main Characteristics
1. Compact structure, reliable sealing, perfect function and attractive shape .
2. Ductile iron Full port double eccentric plug valve easy to be opened or closed.
3.For the spare parts material and flange size,Ductile iron Full port double eccentric plug valve can be customized according to different actual working condition to meet project requirements.

Ductile iron Full port double eccentric plug valve Technical Specification

Design & manufacturer	API599, API6D
Nominal diameter	1/2'' ~ 16''( 15mm ~ 400mm)
Pressure class	Class 150 ~ Class 900
Length of face to face	ASME B16.10
Flange end	ASME B16.5
Test & inspection	API598, API6D
Operation model	Handle wheel, worm gear, pneumatic and electric actuated
