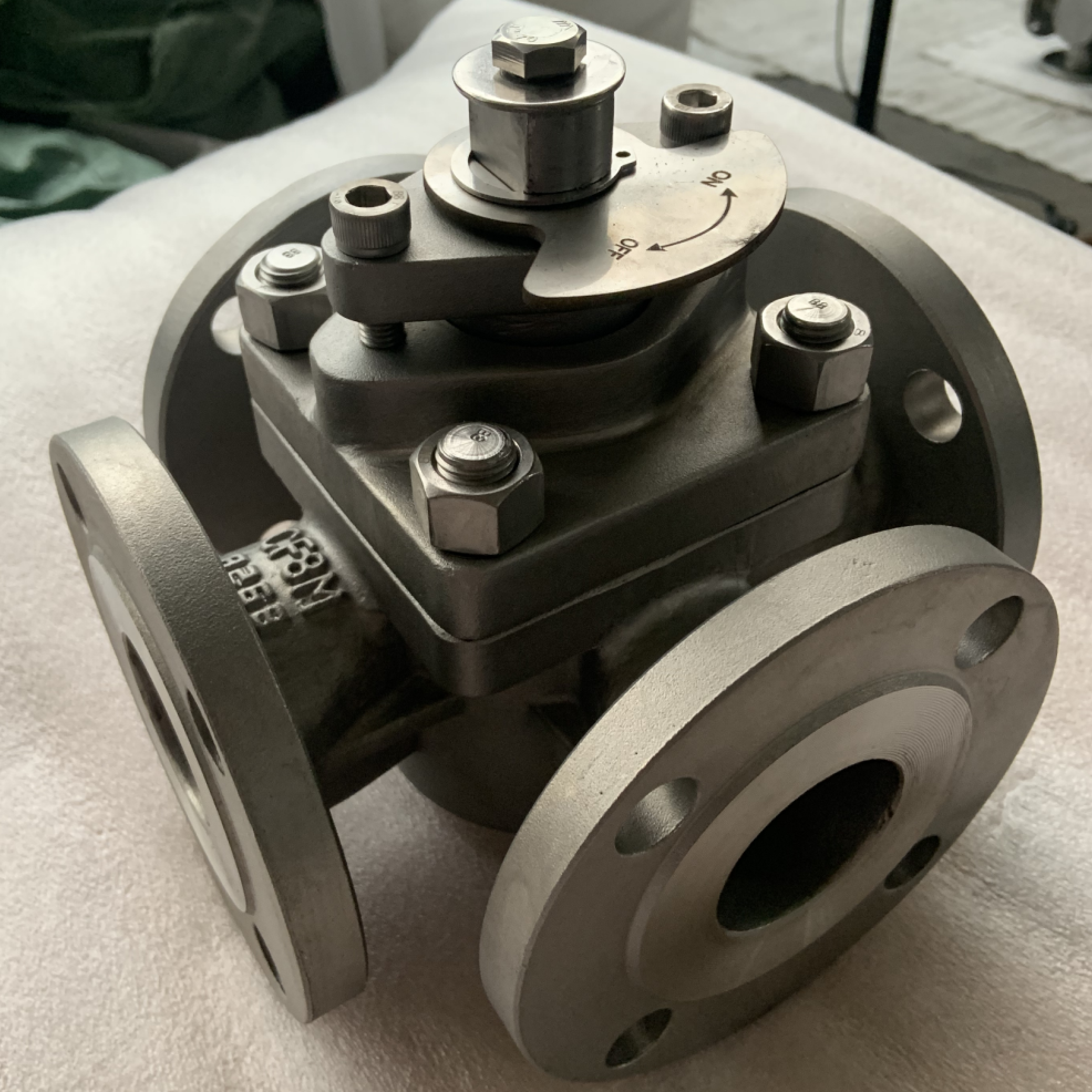

Four Way Sleeved Plug Valve

Plug Valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：DN15-DN600
Pressure：Class 150-Class 300,PN10-PN40
Medium：W.O.G.
Temperature :-29～180℃
Body material：WCB, CF8,CF8M,etc.
Description：China Four Way Sleeved Plug Valve manufacturer, factory and supplier.

China four way sleeved plug valve manufacturer, factory and supplier. Four way sleeved plug valve is applicable to change the medium flowing direction to distribute the mediums, Four way sleeved plug valve is used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power, industry etc. under nominal pressure class 150-900LBS, PN 1.0-16.0, working temperature of -40~180℃.

Four way sleeved plug valve feature
1. Four way sleeved plug valve has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2. According to different conditions, Four way sleeved plug valve can be designed into various medium flowing forms or all kinds of materials(Cast iron, cast steel, stainless steel ) or various sealing forms (e.g. metal to metal, sleeve type, lubricated, etc.)
3. The materials of the parts and sizes of flanges can be configured reasonably according to the actual operation the customer required, so as to meet the various needs of engineering.
Four way sleeved plug valve

Four way sleeved plug valve requirement

Structural formation	BB-BG
Diving manner	Hand wheel, worm, worm gear, pneumatic, electric-actuated
Design standard	AP1599, AP16D, GB12240
Face to face	ASME B16.10, GB12221,DIN3202
Flange end	ASME B 16.5,JB79,GB9113,DIN2543-2545
Test ＆inspection	AP1598.AP16D,GB13927,DIN3230

Four way sleeved plug valve technical requirement

Product name	Four way sleeved plug valve
Model Number	X45
Size Range	DN15~600 1/2"~24"
Pressure Rating	1.6MPa,2.5MPa,4.0MPa,6.4MPa,10.0MPa,150LB,300LB,600LB 900LB
Temperature Rating	-30~+220℃(Temperature range subject to the material of sealing and the property of medium)
Flange Drilling	DIN ANSI BS,etc.
Testing	Shell Test and Seal Test
Main Material	WCB,CF8,CF8M,CF3,CF3M,2205,2507,904L,etc.(Other materials are available under request.
Advantage	According to different conditions, the 4 way plug valve can be designed into diverseful media flowing forms(eg."L" type or "T" type) and many kinds of sealing forms(eg. Metal to metal, sleeve type, lubricated, etc.). There is no cavity in the valve for accumulation of medium.

Four way sleeved plug valve performance

PN(LB)	Shell test (MPa)	Sealing test (MPa)	PN(MPa)	Shell test (MPa)	Sealing test (MPa)
150	3.0	2.2	1.6	2.4	1.76
300	7.5	5.5	2.5	3.75	2.75
600	15.0	11.0	4.0	6.0	4.4
600	15.0	11.0	6.4	9.6	7.04
900	22.5	16.5	10.0	15.0	11.0
900	22.5	16.5	16.0	24.0	17.6

Four way sleeved plug valve flow direction
